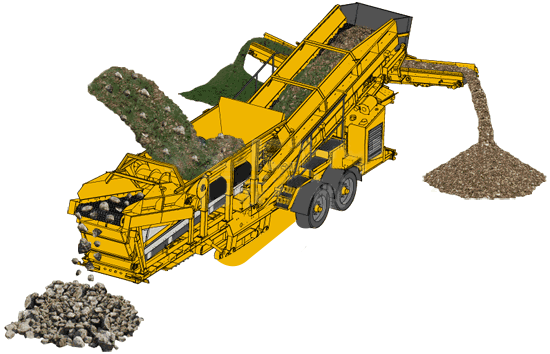

Portable mobile crusher

Portable mobile crusher is a movable sand-making and shaping equipment. It has strong overall coordination and can be directly driven to the site for sand processing. It is stable in operation, complete in function and practical. Strong.

Performance advantage:

1.Car integrated machine, more convenient
All parts of the mobile sand making machine are installed in the vehicle, which can not only eliminate the complicated installation of the infrastructure of the split components, reduce the material and working hours, but also greatly improve the flexibility of the equipment transition;

2.Flexible combination and wider application
In addition to the original group machine style, this one-piece vehicle mobile sanding machine can provide more flexible process configuration according to different material types and product requirements of customers;

3.Flow sand making, more cost saving
The mobile sand making machine has strong mobility and can go deep into the site to make sand processing of ore materials, which not only breaks the limitation of production conditions, sand making environment on sand making equipment, saves material handling links, and simplifies sand making. The process, but also can save the user a considerable shipping cost and so on.

Parameters

type	HX3S1848V08	HX3S1860V09	HX3S2160V103
Transport length（mm）	13500	15600	15600
Transport width（mm）	2830	2830	3100
Transport height（mm）	4350	4350	4480
Max width（mm）	14650	16300	16300
Max lenght（mm）	3900	3900	3900
Max height（mm）	5980	6400	6550
weight（t）	31	36	49
Sand making machine	HVI0815	HVI0922	HVI1032
ischarge belt conveyor	B800×2.2M	B800×2.5M	B1000×2.5M
Under the belt conveyor	B800×7M	B800×8M	B1000×8M
Vibrating screen model	3YZS1848	3YZS1860	3YZS2160
