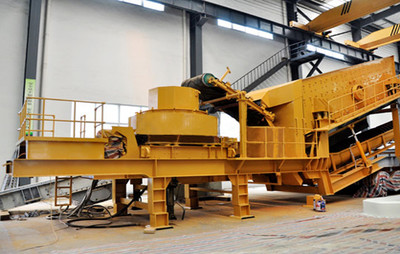

mobile VSI crusher station
Feed particle size65-80mm.
Processing capacity80-250t/h.
Applicable materialRiver pebble, limestone, granite, basalt, diabase, andesite, ore tailings, artificial sand making of stone chips, etc..
Transport Package:Standard Packing,Seaworthy Packing,or as Require
you can contact us.
Product features :
1. VSI series high performance crusher;
2. Vehicle feeder, vibrating screen and belt conveyor;
3. Traction steering shaft for easy road transportation;
4, on-board installation support, equipment installation on site is fast and convenient;
5. Integrated installation of motor and control box.
Parameters
| Tire mobile vertical shaft impact crushing station | VSI-4000 | VSI-5000 | VSI-6000 | VSI-7000 | ||||
| LENGHT(mm) | 98000 | 11280 | 10180 | 11180 | ||||
| WIDTH(mm) | 2460 | 2780 | 2780 | 2780 | ||||
| HEIGHT(mm) | 4200 | 2500 | 4200 | 4316 | ||||
| WEIGHT(kg) | 21600 | 32000 | 24600 | 33650 | ||||
| Vertical impact crusher | ||||||||
| TYPE | VI-5000 | VI-5000 | VI-6000 | VI-7000 | ||||
| INPUT(mm) | 65(80) | 65(80) | 80(100) | 80(100) | ||||
| Vibrating screen | ||||||||
| TYPE | 2/3YK1545 | |||||||
| CONVEYOR BELT | ||||||||
| TYPE | B650x6.5 | B800x7 | B1000x7.2 | |||||
Principle
Tire mobile vertical shaft impact crushing station product features and working principle:
working principle:
The material is pre-selected by the feeder, sand production is carried out by the impact crusher, and the closed circuit system is formed by the vibrating screen to realize the cyclic crushing of the material, which can effectively reduce the sand processing process, and the finished material is output by the conveyor for continuous crushing. operation.
All components of the vertical impact mobile crushing plant are onboard, including: solid frame, vertical shaft impact crusher, feeder, vibrating screen, conveyor belt, motor and control box.
