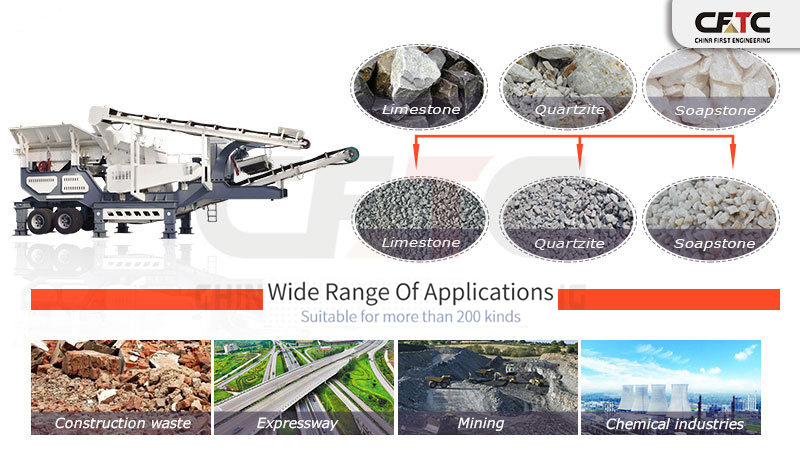

Tire mobile impact crusher station

The structure of the  tire mobile impact crusher station:
Tire mobile impact crusher station offers maximum set-up flexibility, from course to fine crushing, and is cost efficient.All parts of the impact-type mobile crushing plant are onboard, including: solid frame, impact crusher, feeder, vibrating screen, conveyor belt, motor and control box.

The features and technical advantages of tire mobile impact crusher station :
1. The tire mobile impact crusher station can directly crush the materials on the site without having to move the materials away from the site for further processing, which greatly reduces the transportation cost of the materials;
2, equipped with excellent performance of the main equipment, the crushing ratio is large, the efficiency is super high, the output is larger, the effect is very good, is the ideal crushing pioneer;
3. Mature design scheme creates a green, pollution-free broken environment;
4, the use of a new centralized lubrication system, unified maintenance toolbox design, maintenance and maintenance is more convenient, can save a lot of labor, time costs;
5, good mobility,compact structure, easy to use;
6, stable performance, easy maintenance; flexible configuration;
7, construction waste can be recycled after being broken, turning waste into treasure, reducing the cost of construction waste while saving costs.
Tell us your detailed requirement and we can design the suitable model for you, contact us now.

Parameters

Model	M-PF1210	M-PF1214	M-PF1315	M-PF1110	M-PF1315
Transportation Length（mm）	12000	12000	13900	15450	15450
Transportation Width（mm）	2550	2550	2900	2950	2950
Transportation Height（mm）	3900	3900	4450	4500	4500
Maximum Length（mm）	12500	12500	13900	15450	15450
Maximum Width（mm）	3250	3260	3250	3250	3250
Maximum Height（mm）	5100	5200	5200	5200	5200
Weight（t）	39	44	54	62	62
Crusher Model	PF-1210	PF-1214	PF-1315	HD1110	HD1315
The Maximum Feeding Size（mm）	350	350	500	400	700
Production Capacity（t/h）	70-130	100-180	130-250	112	280
Vibrating Feeder	ZSW950×3800	ZSW950×3800	ZSW110×4900	ZSW130×4900	ZSW130×4900
Main Belt Conveyor	B800×8.5M	B800×8.5M	B1000×9.5M	B800×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3.2M	B500×3.2M	B650×4M	B650×4M	B650×4M
Genset(Optional) （kw）	320	320	400	320	440
Iron Separator (Optional)（kw）	RCYD(C)-8	RCYD(C)-8	RCYD(C)-10	RCYD(C)-8	RCYD(C)-12

Principle

The material is evenly conveyed into the crusher through the feeder, and after the crusher is initially crushed, the closed circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material, and the finished material is output by the conveyor for continuous crushing operation. The counter-moving mobile crusher can remove the circular vibrating screen according to the actual production needs, and realize the direct crushing of the material directly. It is convenient and flexible to operate with other crushing equipment.
