Concentrating Table
Feed particle size0.55-1.5(kW).
Processing capacity0.2-1.5 t/h.
Applicable materialIt is used to separate tungsten, tin, antimony, bismuth, rare metals and precious metals. It is also suitable for separating iron, manganese ore and coal..
Transport Package:Standard Packing,Seaworthy Packing,or as Require
you can contact us.
Concentrating Table equipment can be used in roughing, selection, scavenging, and other operations, and different particle-size classifications of coarse sand (2-0.5mm), fine sand (0.5-0.074 mm), slurry (-0.074mm). When processing the minerals such as tungsten and tin, the effective recycling particle size of the table ranges from 2-0.22 mm. Besides, it also can be used in classifications of iron and manganese ores.
Frame
Deck
Consignment
Advantages and Characteristics
1. Ingenious structure of inertial gearing, self balanced vertical force component. No vertical jump because no vertical vibrating force. It can be installed on the building floor, or on the bracket
2. Lift type, minimal consumption of friction, reduce vibration and energy-saving, non-required bulky base, quick and flexible installation
3. It adopts fiberglass deck with wear-resistant layer, wear-resistant, waterproof, anti-dry, anticorrosion, non-deformed, less maintenance, long service life
4. The deck installed in an uniform frame Layer-by-layer, easy to install and unload, increase processing capacity per unit area. Replace different weight blocks can change the stroke of shaking table
5 .It adopts variable-frequence governor, easily change frequency of stroke to adapt different material with different particle size and feature
Parameters
| Table length*feeding width*Concentrate mouth width | Strokemm | Jig frequency(c. p. m) | Transverse slope adjustment range | Particle | Water consumption | Production capacity | Production volume (t/d) | weight(kg) | |||
| Ore sand | Slurry | Ore sand | Slurry | Model | Power(kw) | ||||||
| 3000*1320*1100 | 6/30 | 210-320 | 0-10 | -2 | -0.1 | 0.3-1.5 | 0.7-1.5 | 0.4-1.0 | Y100L-6 | 1.5 | 650 |
| 2100*1050*850 | 12/28 | 250-450 | 0-8 | -2 | -0.074 | 0.2-1.0 | 0.4-0.8 | 0.3-0.5 | Y90L-6 | 1.1 | 450 |
| 1100*500*4230 | 9/17 | 280-460 | 0-10 | -2 | -0.074 | 0.1-0.5 | 0.1-0.2 | 0.05-0.1 | Y80L-4 | 0.55 | 150 |

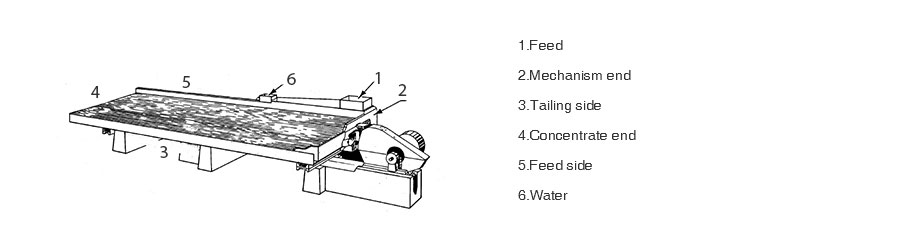

Principle
The Concentrating Table process carries on the complex inclined bed surface , and the ore grains are sent in from the bed surface for the ore trough, simultaneously it supplies crosswise wash for the water trough, thus the ore grains laminate surface and according to the proportion and granularity, and make the longitudinal motion and transversal motion along the bed surface, in function of the gravity, the crosswise running water momentum, and the inertia and friction force from the reciprocation symmetry movement of bed surface. Therefore, the proportion and the granularity different ore grain assumes gradually along respective heading by A on the one hand to B on the other hand fan-shaped flows off, separately discharges from the ore concentrate end and the debris side different area, finally is divided into the ore concentrate, the middling and the debris.
