Fine Sand Recovery System

As a new type of environment-friendly equipment, the fine sand recovery system has been gradually applied to the hydropower, aggregate production line, glass raw material processing system, artificial sand making plant, recovery of coarse slime in coal preparation plants, and environmental protection engineering (mud purification, etc.). It can effectively solve the problem of fine sand recycling.

Hydrocyclone

Slurry pump

Consignment

1. It can effectively reduce the loss amounts of the fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content.
2. The fine material can be recycled as high as 95%, with incomparable technical and ecnomic advantages.
3. Stable vibration, long serving life and easy maintence.
4. Fines 0.1-3mm brings good profits.
5. Unique in market, LZ patent product.

Parameters

Principle

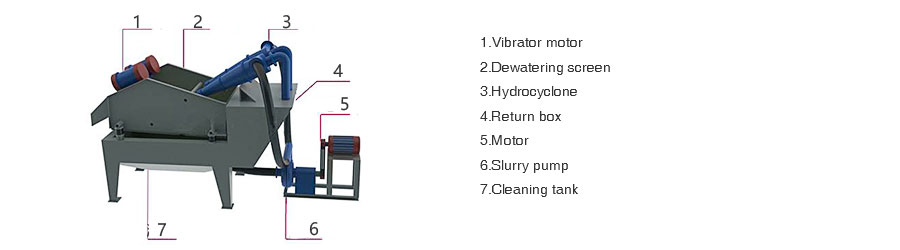

Through rubber pipes sand water mixture is extracted from cleaning tank into slurry pump. The fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The o.16-3mm fine sand and water are efficiently separated through the vibration screen. The waste water will flow back to the return box, through weld chute or pipes flowing to a setting pond.
