ZSW Vibrating Feeder

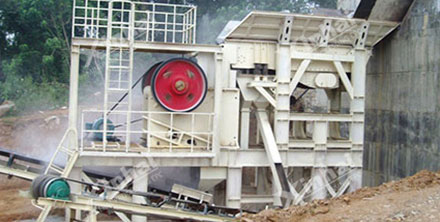

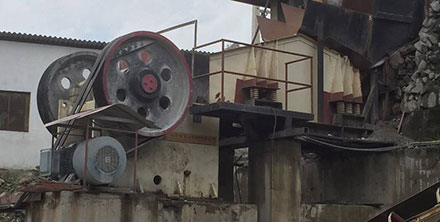

The vibrating feeder is mainly used for continuously and evenly feeding coarse crusher, screening fine aggregate, and thus enhances crusher capacity.
The vibrating feeder is widely used in crushing and screening joint equipments in the industries of metallurgy, beneficiation, building materials, chemical engineering, coal mine, material grinding, etc.



CFTC ZSW Vibrating Feeder has the following advantages：

:1. Designed with extra-heavy exciter and rack, soundstructure, strong anti-impact capacity;
2. Perfect structure design, high throughout capacity,good material fluidity without blocking ;1. The vibrating feeder features double screening and embodies the functions of dirt removing, screening and feeding. It is characterized by even feeding, excellent continuity and adjustable vibrating force.
3. Smooth operation, great feeding capacity and high efficiency.
4. Eccentric block is the vibration source which features smooth operation, low noise, little electricity consumption, excellent adjustability and causes no material clashing.





Parameters

Model	Hopper size (mm)	Max. feeding size (mm)	Capacity (tph)	Obiquity of material trough (°)	Power (kW)	Total weight (t)	Overall dimensions(L*W*H) (mm)
ZSW-380X95	3800X960	500	100-160	0	11	4.82	3920X1640X1320
ZSW-490X110	49000X1100	630	150-320	0	15	6.64	4980X1830X1320
ZSW-490X130	4900X1300	750	400-600	0	22	8.76	4980X2580X2083
ZSW-600X130	6000X1300	750	400-600	0	22	9.25	6082X2580X2083
ZSW-600X150	6000X1500	800	500-800	0	30	10.19	6086x2662x1912
ZSW-600X180	6000X1800	800	700-1000	0	37	13.75	6310x3262x2230

Principle

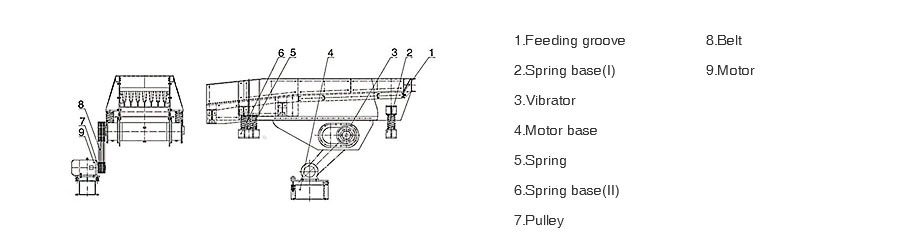

ZSW linear vibrting feeder consists of the groove, exciter, spring support base, transmission device and so on. The exciter is the vibration source. The exciter is made up of two eccentric shafts (one is the driving shaft, the other is driven shaft) and a gear pair. The motor drives the driving shaft through the V-belt, and the driving shaft drives the driven shaft. The driving shaft and driven shaft rotate conversely at the same time to vibrate the groove. The materials in the groove move forward to achieve the result of feeding. GZD Series vibrating feeder adopts double vibrating motor to vibrate the groove to feed materials to the crusher.
