Spring Cone Crusher
Feed particle size30-280(kW).
Processing capacity10-700tph.
Applicable materialit is suitable to crush the high or medium hardness rock and minerals..
Transport Package:Standard Packing,Seaworthy Packing,or as Require
you can contact us.
The cone crusher adopts the best combination of crushing frequency and eccentricity, which makes the material to be crushed more compact, and the crushing capacity has higher output than similar models, and also enhances the laminating fracture between material particles. The function is to effectively improve the three-dimensional shape of the material after being broken. The use of hydraulic safety, hydraulic locking, hydraulic adjustment, hydraulic clearing chambers and other devices makes the operation easier to automate. Under normal use, the equipment is optimized for a trouble-free operation rate of over 95%.
Main shaft
Concave & mantle
Consignment
1.Reasonable structure, low fault rate，low operating cost;
2.Wide application, applying to crush kinds of raw material;
3.Reliable spring protection system can provide safety and efficient protection of overload;
4.Separate automatic oil lubrication system;
5.Low investment cost ,more economic.
Parameters
| Model | Diameter of moving cone(mm) |
Feeding open(mm) | Discharge opening (mm) | Capacity(mm) | Weight(t) | Power (kW) | Overall dimensions (mm)） |
| PYB600 | 600 | 65 | 12--25 | 40 | 5 | 30 | 2234x1370x1675 |
| PYD600 | 35 | 3--13 | 12--23 | 5.5 | |||
| PYB900 | 600 | 115 | 15-50 | 50-90 | 11.2 | 55 | 2692x1640x2350 |
| PYZ900 | 60 | 5--20 | 20-65 | 11.2 | |||
| PYD900 | 40 | 3--13 | 15-50 | 11.3 | |||
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 24.7 | 110 | 2790x1878x2844 |
| PYZ1200 | 100 | 8---16 | 42-135 | 25 | |||
| PYD1200 | 50 | 3--15 | 18-105 | 25.3 | |||
| PYB1750 | 1750 | 215 | 25-50 | 180-360 | 50.3 | 160 | 3910x2894x3809 |
| PYZ1750 | 185 | 10--30 | 80-210 | 50.3 | |||
| PYD1750 | 85 | 5--15 | 60-180 | 50.2 | |||
| PYB2200 | 2200 | 300 | 30-60 | 420-700 | 90 | 280 | 4622x3302x4470 |
| PYZ2200 | 230 | 10--30 | 130-410 | 80 | |||
| PYD2200 | 100 | 5--16 | 80-200 | 81.4 |

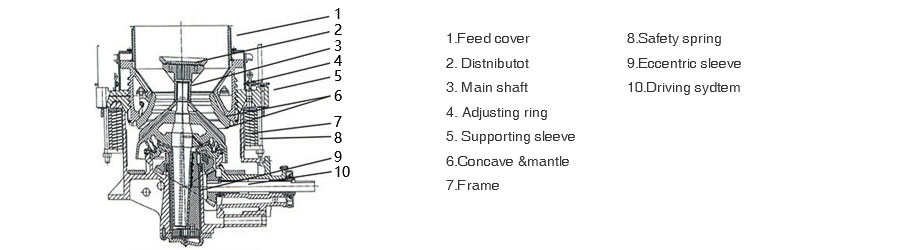

Principle
When the cone crusher is working: the rotation of the motor is rotated by a pulley or a coupling, a cone crusher drive shaft and a conical crusher conical portion under a forced rotation of the eccentric sleeve. Therefore, the broken wall of the crushing cone is close to and sometimes leaves the surface of the shackle wall fixed on the adjusting sleeve, so that the ore is continuously subjected to impact, extrusion and bending in the crushing chamber to realize the crushing of the ore.
