Tire mobile cone crusher station

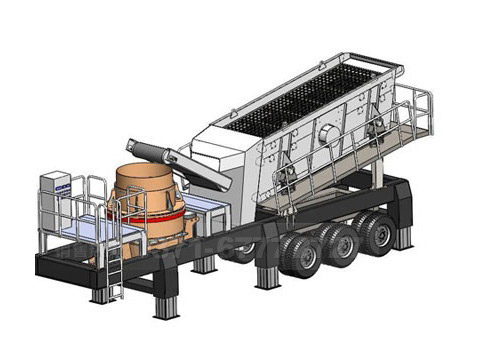

The structure of the  mobile cone crusher station:
The cone crusher loaded by the wheeled cone type mobile crushing plant has a fully hydraulic closed side adjustment device, which can produce aggregates of 10 to 45 mm. The hydraulic closed side adjustment device of the cone crusher is designed to quickly and easily adjust the setting of the crusher. Adjustments are made through the control box, making this system ideal for situations where the discharge port parameters need to be adjusted regularly.
All parts of the conical mobile crushing plant are onboard, including: solid frame, cone crusher, feeder, vibrating screen, conveyor belt, motor and control box.

The features and technical advantages of mobile cone crusher station :
1. Good mobility;
2, compact structure, easy to use;
3. Save costs and reduce costs;
4. Higher applicability;
5, stable performance, easy maintenance;
6, flexible configuration.
Both in rock stone crushing and mineral ore crushing industry, mobile cone crusher is becoming more and more popular. The portable cone crusher or mobile cone crusher plant is widely used in the industries of mine crushing, construction waste recycling, construction aggregate production, and highway, railway and bridge construction,etc.

Parameters

SMH120	SMH180	SMH180	SMH250	SMH250
input(mm)	160	180	180	240
adjustment range (mm)	22-32	22-32	22-32	26-51

Principle

The material is evenly conveyed into the cone through the feeder, and after the cone crusher is initially crushed, the closed circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material, and the finished material is output by the belt conveyor for continuous crushing operation. The conical mobile crushing station can remove the circular vibrating screen according to the actual production needs, and realize the direct crushing of the material directly. It is convenient and flexible to operate with other crushing equipment.
