Mobile screening plant

The design of the Mobile screening plant is upgraded and improved on the basis of the traditional vibrating screen. The traditional vibrating screen is fixedly placed in one place, while the mobile vibrating screen changes the traditional fixing method and has the characteristics of strong mobility, eliminating the need for The construction of infrastructure such as piling in the early stage of fixed vibrating screen.
The Mobile screening plant is applied to the post-crushing section, and as a direct connection device for coarse and fine crushing, the granular materials of different sizes can be sieved. It is suitable for the screening of various ores such as granite, river pebbles, bluestone, basalt, limestone, etc. The screening effect is remarkable. According to customer requirements, single-layer, double-layer and three-layer screening equipment can be designed.

Mobile screening plant performance characteristics:
1. Mobility is convenient and fast, and can be customized according to the actual needs of customers, and the design style is diversified.
2, the use of durable materials, quality, long service life, excellent running performance.
3. The structure design is simplified, the investment cost is low, and the return period is short.
4. The screening capacity is large, the screening efficiency is high, the finished product has no impurities and the quality is good.
5, simple maintenance, hydraulic automatic upgrade system, simple operation, no manual operation, automatic production throughout the process.
6. Silent production during operation, no dust pollution, low energy consumption, significant energy saving and environmental protection effect.

Parameters

type	Number of layers	inclination (°)	power (kw)	frequency (r/min)	Maxt-input (mm)	Capacity(t/h)	size(mm)
2CFTC1545	2	18	15	780-900	200	60-500	5380×2295×1410
3CFTC1545	3	18	15	780-900	200	65-500	5575×2295×1990
4CFTC1545	4	18-20	18.5	780-900	200	65-500	5765×2295×1990
2CFTC1855	2	18	18.5	780-900	200	75-600	5680×2565×1450
3CFTC1855	3	18	22	780-900	200	75-600	5900×2460×2110
4CFTC1855	4	18-23	22	780-900	200	75-600	6030×2565×2500
2CFTC2165	2	18	30	780-900	200	85-700	7160×2990×1690
3CFTC2165	3	18	30	780-900	200	85-700	7380×2990×2365
4CFTC2165	4	18-23	37	780-900	200	85-700	7430×2990×2550
2CFTC2465	2	18	37	780-900	200	100-800	7160×3290×1690
3CFTC2465	3	18	37	780-900	200	100-800	7380×3290×2365
4CFTC2465	4	18-23	37	780-900	200	100-800	7430×3290×2500
2CFTC2765	2	18	37	780-900	200	120-900	7180×3570×1805
3CFTC2765	3	18	45	780-900	200	120-900	7390×3570×2445
4CFTC2765	4	18-23	45	780-900	200	120-900	7480×3570×2715
2CFTC3065	2	18	37	780-900	200	200-1200	7180×3870×1805
3CFTC3065	3	18	45	780-900	200	200-1200	7390×3870×2445
4CFTC3065	4	18-23	45	780-900	200	200-1200	7480×3870×2715
2CFTC3075	2	18	22×2	780-900	400	200-1300	8700×4055×1980
3CFTC3075	3	18	37×2	780-900	400	200-1300	8940×4120×2720

Principle

Mobile screening plant structure and composition:

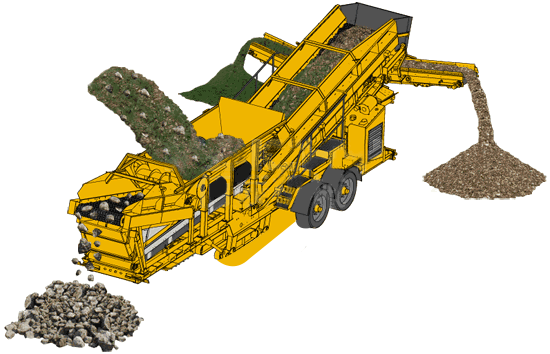

The mobile vibrating screen structure consists of a moving fra:me, a tire, a vibrating screen, an electric control system, a motor, etc., and two, three, and four layers of screens can be designed according to customer requirements, according to different specifications of the discharge size requirements. The installation of different layers of screens makes the device simple and easy to use.
