Y3S1848S36-mobile cone crusher

Feed particle size160-240mm.

Processing capacity40-390t/h.

Applicable materialLimestone, granite, sand gravel, sandstone, construction waste, coal, concrete, iron ore, quartz, artificial sand, brick and tile, dolomite, coal gangue, basalt, etc..

Transport Package:Standard Packing,Seaworthy Packing,or as Require

We will provide you with the best quality service.If you are interested in our product,
you can contact us.

jackerhuayi@gmail.com Send Enquiry

Overview
Parameters
Send Enquiry

The Y3S1848S36-mobile cone crusher host is Y3S1848S36 cone crusher.Y3S1848S36 is widely used in the industry of mining, metallurgy, building materials, traffic, water conservancy facilities and so on.
The Y3S1848S36-mobile cone crusher is mainly used for the processing of materials that require frequent moving operations, such as chemical industry, building materials, hydropower, etc., especially in roads, railways, etc., users can use a variety of configurations according to different requirements of finished materials. Work in the form.
Y3S1848S36-mobile cone crusher is suitable for processing all kinds of hard materials, such as limestone, bluestone, granite, river pebble, limestone, basalt, etc. For different materials, it can be used with different series of cone crushers. It has strong applicability and production efficiency. high.

Performance advantages:
1. Move easily.
2. Compactly structured and simple to operate.
3. High cost-performance ratio.
4. Wide application.
5. Superior performance and convenient to maintain.
6. Adjustable configuration

Parameters

type	Vibrating screen	Cone crusher	Belt conveyor	capacity(t/h)	power(kw)	size(mm)	weight(t)
Y3S1548Y900	3YZS1548	PYB900	B500×7M	50-200	75	13000×2800×6400	43
Y3S1848S36	3YZS1848	ZYS36	B650×7M	70-300	99-134	13000×3000×6700	47
Y3S1860S51	3YZS1860	ZYS51	B650×8M	120-400	212.5-220.5	14000×3000×6700	53
Y3S2160H220	3YZS2160	HP220	B800×8M	140-450	257.5-264.5	14000×3200×6700	58

Principle

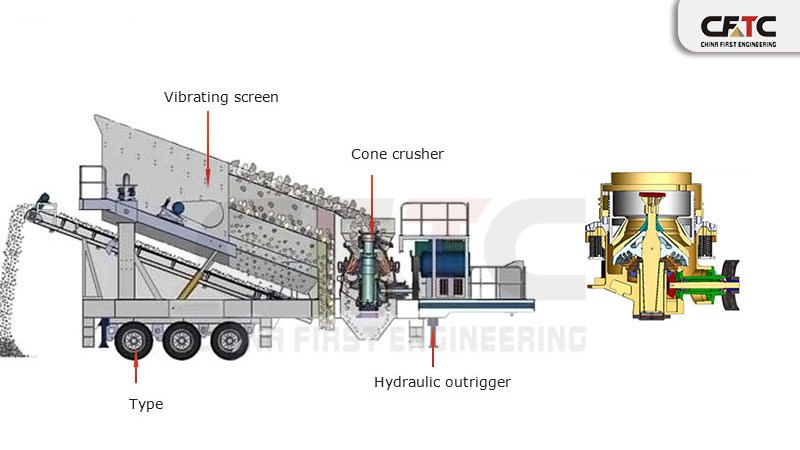

The material is evenly conveyed into the cone through the feeder, and after the cone crusher is initially crushed, the closed circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material, and the finished material is output by the belt conveyor for continuous crushing operation. The conical mobile crushing station can remove the circular vibrating screen according to the actual production needs, and realize the direct crushing of the material directly. It is convenient and flexible to operate with other crushing equipment.
