Tire Mobile jaw crusher

The Mobile jaw crusher is also called mobile crushing station. It is different from the conventional stone crushing equipment. It can directly select the site and drive to the site. It does not need to transport and directly discharges the finished aggregate. It is especially suitable for some small crushing sites. Such as urban construction waste disposal. Its successful launch not only eliminates the cumbersome steel frame structure during the crushing, the construction of the foundation, saves a lot of time, but also increases the user's investment income.

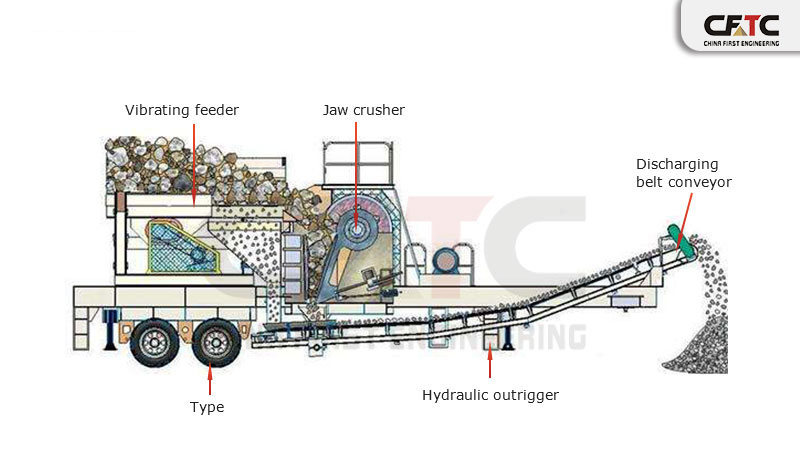

The Mobile jaw crusher  structure features:
The jaw type mobile crusher has a simple structure, mainly including a frame assembly, a main machine, a power system, a hydraulic electric control system, etc. The user can configure auxiliary devices such as a feeder and a conveyor as needed, and the whole machine has a high degree of integration, and various components. The configuration is also quite reasonable, the degree of automation is still very high, and the operation and maintenance are also more convenient.
The Mobile jaw crusher  performance advantages:
1. Small footprint, easy to use, and high efficiency
The vehicle-integrated group machine has a small footprint and can be moved at any time by hanging on the front of the vehicle, which is convenient to operate and more efficient;
2. Powerful, one-time molding operation
It integrates multiple equipments such as “crushing, screening, conveying and feeding”, and can complete the forming operation of many kinds of sand and gravel materials in one time;
3. The machine is flexible and adapts to a wider range.
In addition to the existing machine type, this mobile crusher can also provide customers with more flexible process configuration for the material type and product requirements in the process, so as to meet various requirements such as mobile crushing and moving screening. Make the organization and logistics transfer more direct and effective, and all costs are reduced.
4. Strong sealing and good environmental protection
The broken space environment is sealed to reduce dust spillage. In addition, with the help of some multi-effect new dust removal equipment, it can more effectively control the on-site dust, almost reaching the “zero dust” operation.

Parameters

Model	Feeding opening(mm)	Max. feeding size  (mm)	Adjustable discharge opening (mm)	Capacity  (tph)	Power  (kW)	Weight  (t)
PE-250x400	250x400	210	20-80	5--20	15	2.8
PE-400x600	400x600	340	40-100	16-60	30	7
PE-500x750	500x750	425	50-100	40-110	55	12
PE-600x900	600x900	500	65-160	90-180	55	17
PE-750x1060	750x1060	630	80-140	110-320	110	29
PE-900x1200	900x1200	750	95-165	220-450	110-132	58
PE-1200x1500	1200x1500	1020	150-300	400-800	160-220	100.9
PEX-150x750	150x750	120	18-48	8--25	15	3.5
PEX-250x1000	250x1000	210	25-60	16-52	30-37	6.5
PEX-250x1200	250x1200	210	25-60	20-61	37-45	8.52
PEX-300x1300	300x1300	250	20-90	10-65	75	13.5

Principle

The design concept of the Mobile jaw crusher fully adapts to the various situations of mobile crushing, eliminates the obstacles of crushing the site, environment and basic configuration to the customer's crushing operation, and truly provides customers with simple, efficient and low-cost crushing equipment, which is widely used in mines. Construction waste, metallurgy, chemicals, building materials, water conservancy and hydropower, etc. often require material processing for relocation operations. Users can use a variety of configurations depending on the type, size and finished product requirements of the material being processed. The Mobile jaw crusher has greatly expanded the concept of rough machining operations.
