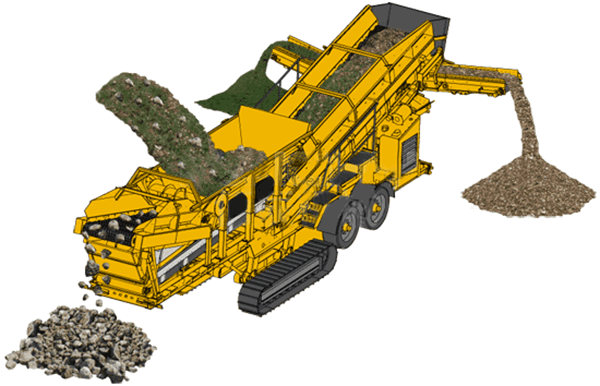

Tracked mobile jaw crusher

The Mobile jaw crusher is also called mobile crushing station. It is different from the conventional stone crushing equipment. It can directly select the site and drive to the site. It does not need to transport and directly discharges the finished aggregate. It is especially suitable for some small crushing sites. Such as urban construction waste disposal. Its successful launch not only eliminates the cumbersome steel frame structure during the crushing, the construction of the foundation, saves a lot of time, but also increases the user's investment income.

The Tracked mobile jaw crusher structure features:
The jaw type mobile crusher has a simple structure, mainly including a frame assembly, a main machine, a power system, a hydraulic electric control system, etc. The user can configure auxiliary devices such as a feeder and a conveyor as needed, and the whole machine has a high degree of integration, and various components. The configuration is also quite reasonable, the degree of automation is still very high, and the operation and maintenance are also more convenient.

Parameters

Type	CFTC96	CFTC106
Silo volume	3m³	5m³
feeding machine	GZDT9538	GZDT1145
Jaw crusher	CJ96	CJ106
belt	LTB800×10m	LTB1000×10m
track	500×3.8m	500×3.8m
Walking speed	0-20m/min	0-20m/min
Gradeability	±20°	±20°
power	96kw	106kw
Total power	112.9kw	141.4kw
shape	13m×2.8m×3.5m	14.4m×3m×3.6m
weight	38t	50t
capacity	300tph	450tph

Principle

The material enters the crushing part of the machine from the feeding hopper, and is rapidly accelerated in the impeller of the crushing equipment. Its acceleration can reach hundreds of times of gravity acceleration, after multiple chance impact, friction and grinding and crushing. The broken material is discharged from the lower discharge opening. As the screening process is carried out, the materials that meet the requirements are finished. Of course, the entire processing process also requires the assistance of feeding.
